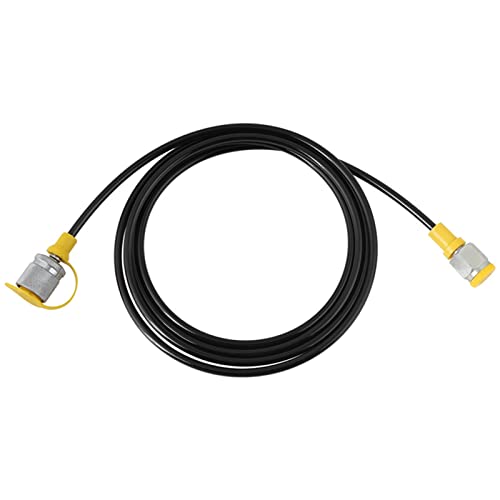

Hydraulic Pressure Test Hose 2.0m/6FT for Hydraulic System Testing

Descriptions: Hydraulic test hose is used in the hydraulic system, test the pressure of each point in the hydraulic system and as a conduit for conducting fluid media. And has good performance of oil resistance, acid and alkali resistance, high pressure resistance. Specifications: Color: black Wall thickness: 1.5 mm Length: 2m/6FT Temperature: - 40 ℃ to + 120 ℃ Lining: nylon Enhanced layer: super industrial fiber Outer cladding: polyurethane Hose I.D.=2mm, O.D.=5mm Allowable working pressure: 64Mpa Minimum blasting pressure:160Mpa Minimum bending radius: 30 mm/1.18inch Weight:105g Package Included: 1 x Hydraulic Pressure Test Hose

Used in the hydraulic system, test the pressure of each point in the hydraulic system and as a conduit for conducting fluid media

It has the features of advanced structure, reliable seal, strong attachment, light weight and easy to use

Lining layer is nylon, the enhancement layer is extremely strong industrial fiber, outer cladding is made from polyurethane

This hydraulic test hose has good performance of oil resistance, acid and alkali resistance, high pressure resistance

One end is M16*2 female,connect to coupling; the other end is BSP1/4 female, connect to Gauge.
